CAD Drafting for Waterproofing Details – Salford
2D Drafting | Detail drawings
To create water proofing details for roof in AutoCAD with proper line weights and annotation by using the reference provided by client.
The project focused on producing water-proofing roof details in AutoCAD with precise details, utilising client-provided references. The client provided us with architectural PDFs, detail drawings, plans, and technical submittals. Our task was to enhance roof waterproofing for an existing building. We created General Arrangement (GA) plans for roof finishes, sections illustrating waterproofing specifics at junctions and levels, and included elements like cladding details, insulation, and fixings. The process comprised referencing input drawings, crafting sections and GA plans, integrating roofing elements, and compiling informative sheets with titles and legends for plans and sections.
Project Attributes:
• Disciplines: Architecture
• Floors: G+4
• Type of Project: PDF to AutoCAD Conversion
• Building Area: 101.35 m2
• Units of Measurement: Millimetres (MM)
• Software: AutoCAD 2021
Sheets Created:
• Sheets with appropriate information such as revision, title, legends, etc.
Plans Created:
• General Arrangement (GA) plans for roof finishes

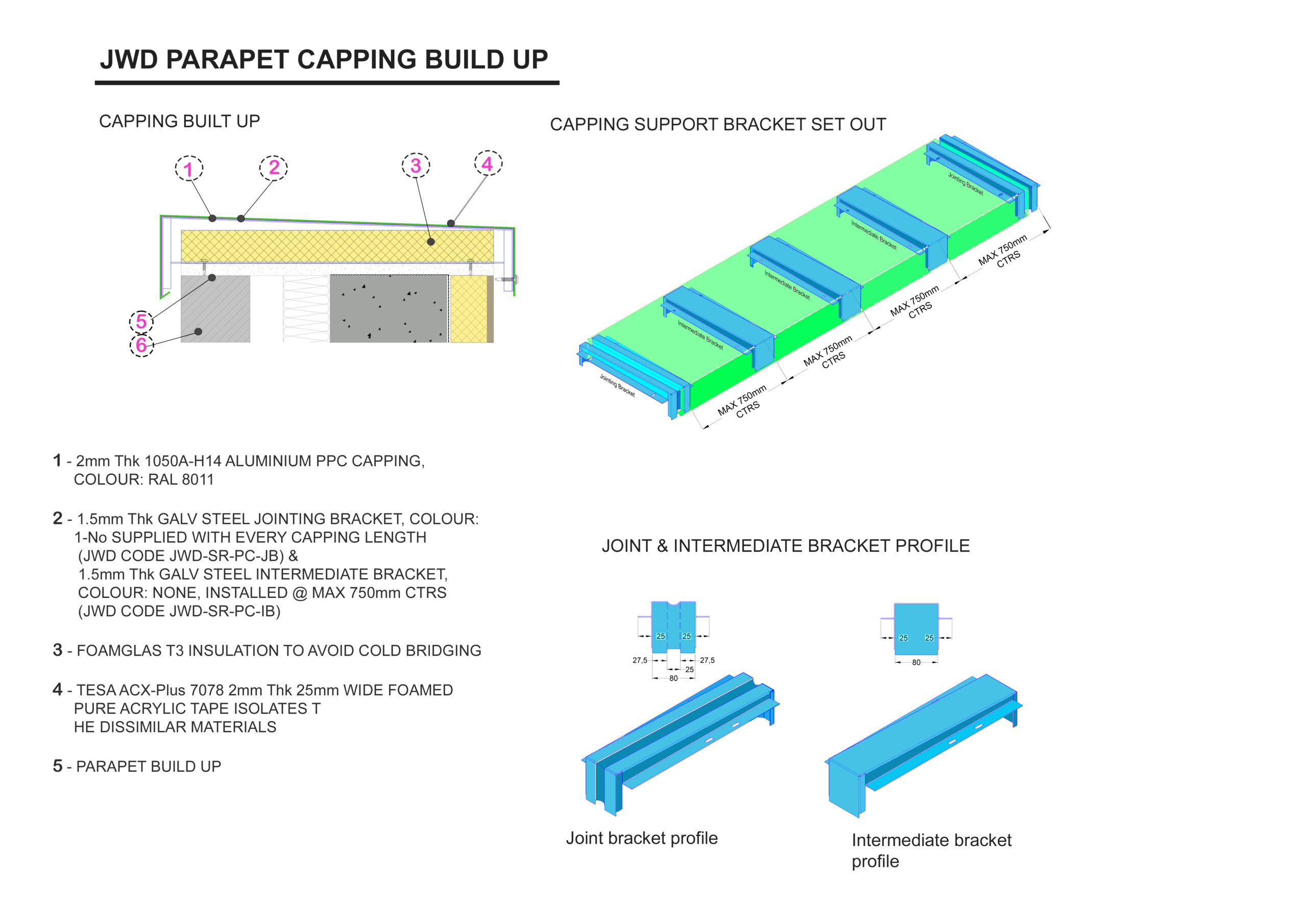

• Sections illustrating waterproofing details at junctions and levels
• All sheets, in both drawing (.dwg) and PDF formats.
