Façade Modeling of buildings overlooking Kingscross Station, UK

Project Type:

Point Cloud to BIM Modelling | Architectural 3D Revit Modelling

Project Highpoints
Objective

The objective of the project was to model facades of the buildings overlooking Kingscross Station at LOD 300.

Summary

The project was a Scan to BIM project of LOD 300 wherein Tesla had to model the facades of the building overlooking the Kings Cross Station. We had completed this project in approximately 20 working days. The client had provided us with the scope of work and google images. We had executed Architectural 3D Revit Modeling for this project with LOD 300.

The below mentioned elements were modeled in LOD 300:

  • Walls
  • Doors
  • Windows
  • Roofs
  • Canopies
  • Entrance staircases & railings
  • Window trims & aesthetics detailing in the elevations
  • Curtain walls
Project Deliverables

Revit model of LOD 300

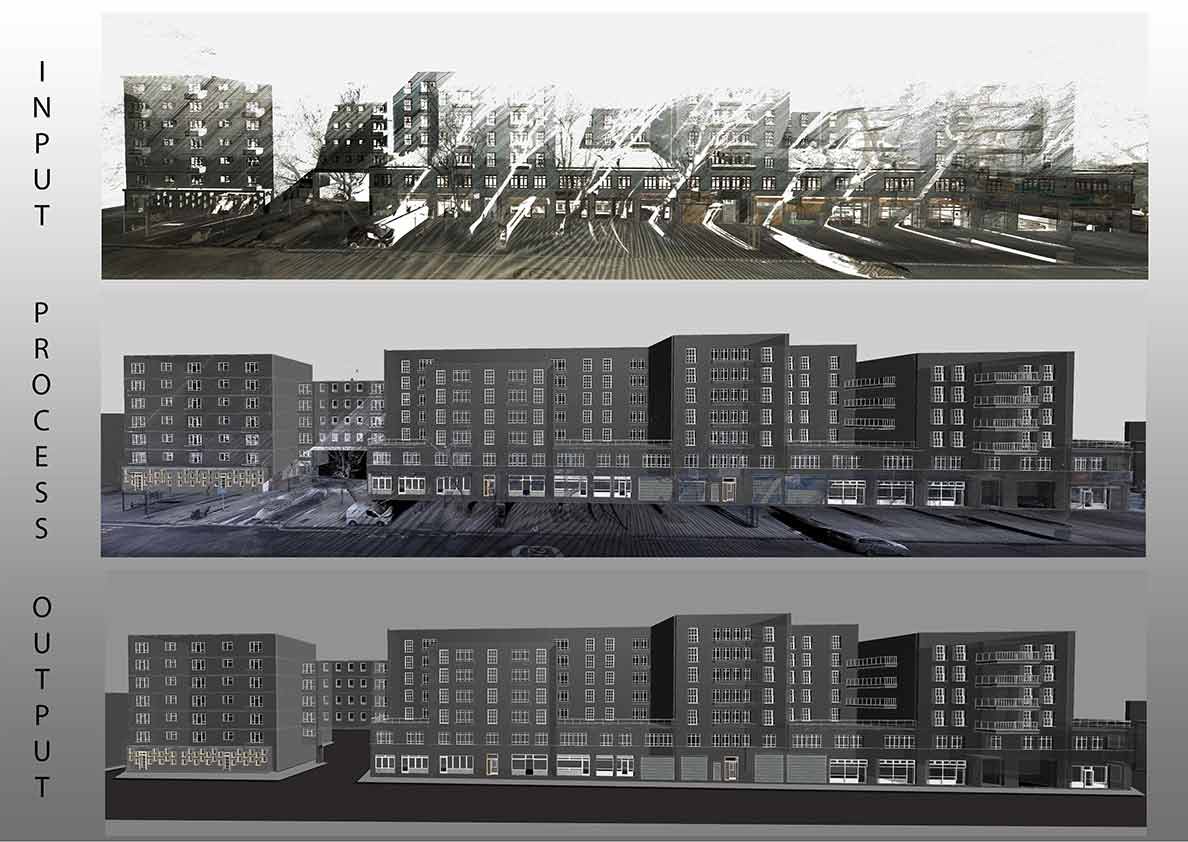

Façade Modeling of buildings overlooking Kingscross Station, UK

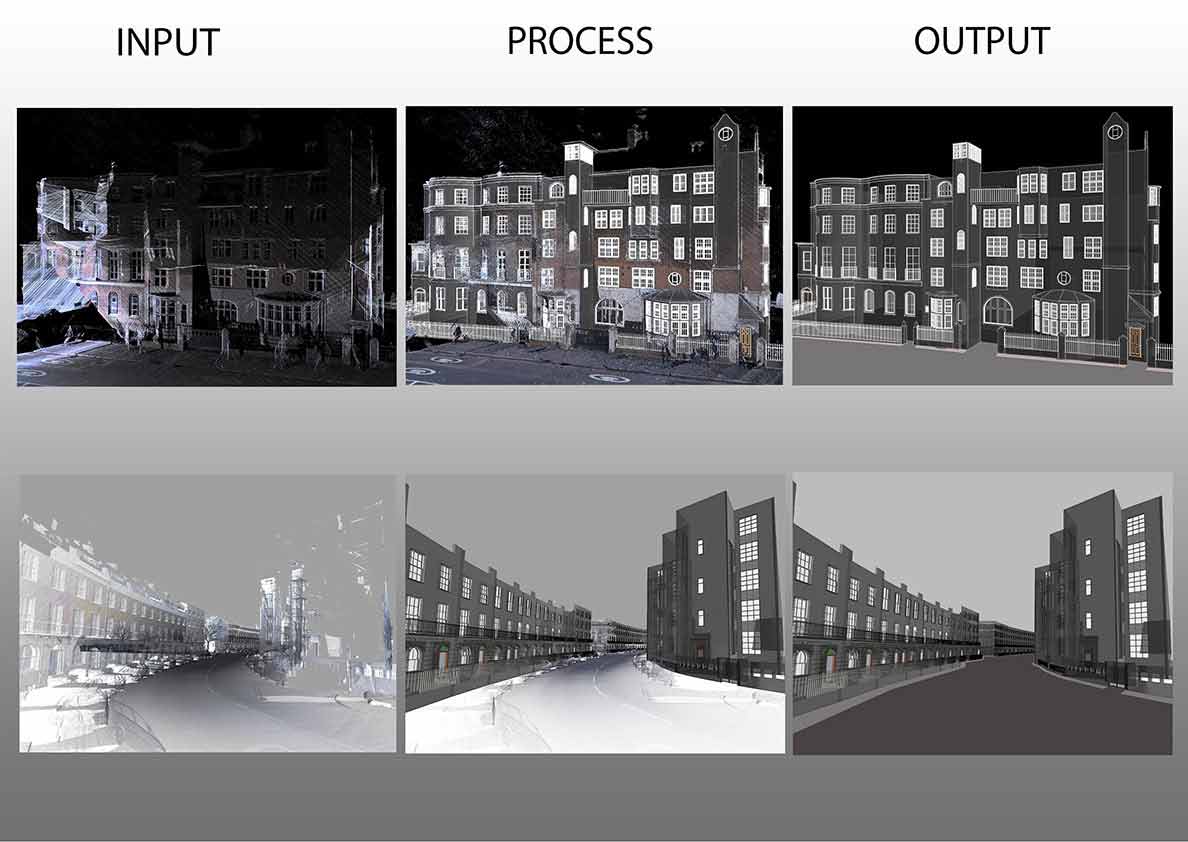

Façade Modeling of buildings overlooking Kingscross Station, UK
