Scan to BIM, Midori House, London
Project Type:
Project Highpoints
Objective
The task was to create and Architectural 3D Revit Model from the inputs such as scans and pdfs for Midori House in London.
Summary

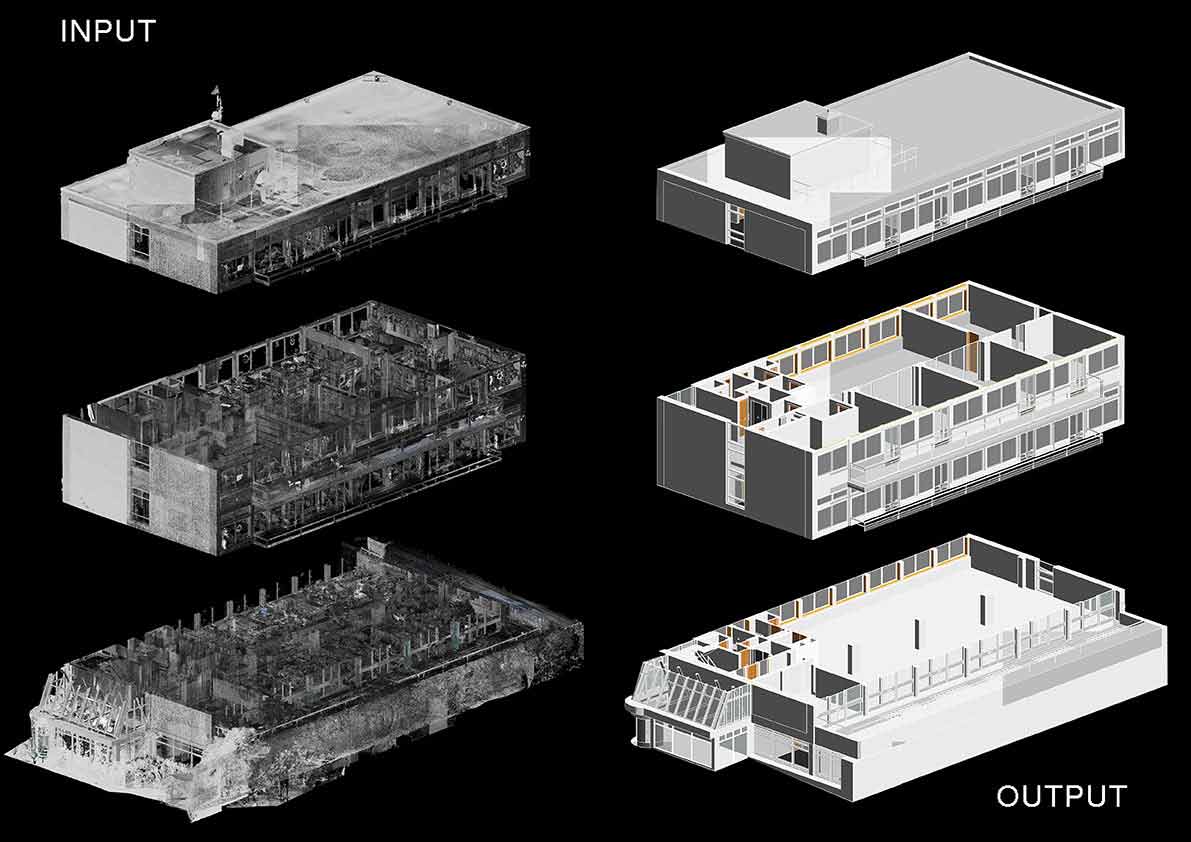

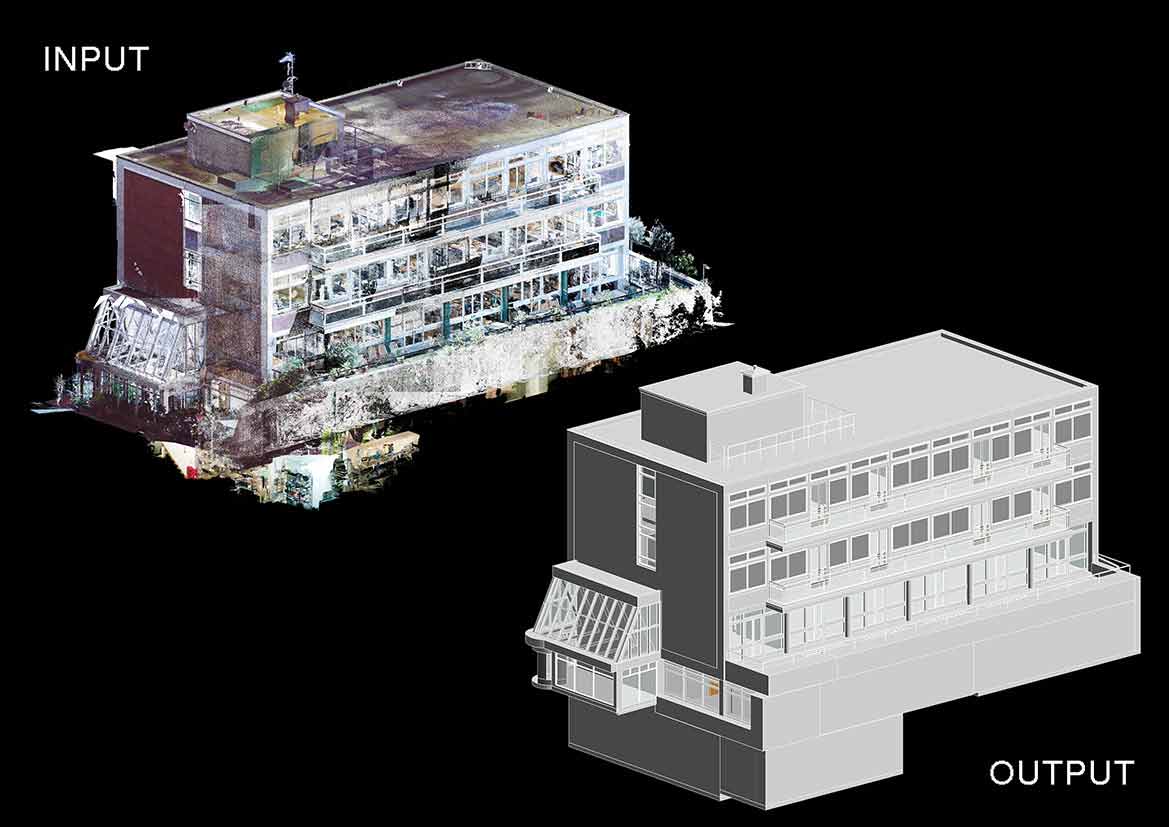

This was a Scan to BIM project of LOD 350 where we had to create an Architectural 3D Revit Model from the scans provided by the client. The building is a commercial space which had shops, cafes, etc.
We had to model the following elements from the scans:
- Walls
- doors
- windows
- floors and slabs
- ceilings
- Columns and beams
- roof
- Staircases and railings
- Curtain walls
- Sanitary fixtures
- Fixed furniture etc.
The turnaround time was very short and the project had to be completed in 2 business days.
Project Deliverables
The output delivered was an Architectural 3D Revit model of LOD 350.
