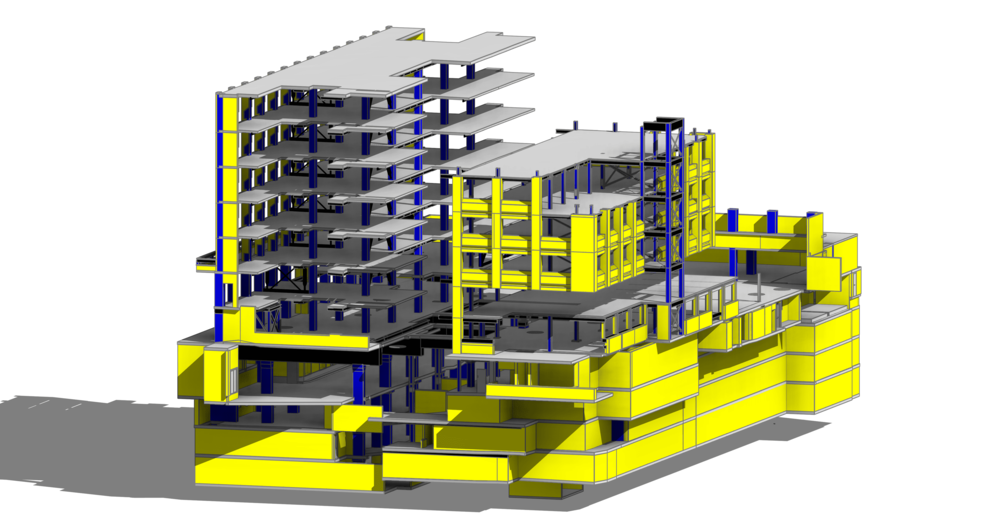

Scan to BIM Modelling for a Commercial Building, UK
Project Type:
Scan to BIM | BIM Modelling | 3D Revit Modelling
Project Highpoints
Objective
Scan to BIM Modelling for an existing commercial building at LOD 300.
Summary
To create a Structural Model of an existing commercial building in LOD 300. The project was divided into three phases;
Phase 1: South (The south part of the building and only from 1st floor to 6th floor)
Area: 3,948 sq.m.
Phase 2: North (Ground & 1st floor of south superstructure, Ground & 2 to 4th floor of North superstructure, External Boundary of neighbor building)
Area: 2,450 sq.m.
Phase 3: Basement (8 levels of Basement of North & South part of Building)
Area: 10,428 sq. m.
Elements modelled:
- All Structural walls
- Columns
- Slabs
- Upstands/downstands beams
- Rainwater pipes
- Manhole covers
- Joists
- Bracing
- Connection plates
- Roof structure
- Rafters
- Trusses
- Floor
- Underfloor
- Stairs
- Ramps
- External/internal walls
- Timber sheets
- Metal deck
- Steel frames
- Material specs
Project Deliverables
- Detailed Revit 3D model.
