Scan to BIM Modelling of Community Centre, Spain
Project Type:
Scan to BIM Services, Architectural Scan to BIM
Project Highpoints
Objective
Scan to BIM Modelling (LOD 200) of Community Centre with multiple types of buildings like church, hotel, theatre etc.
Summary

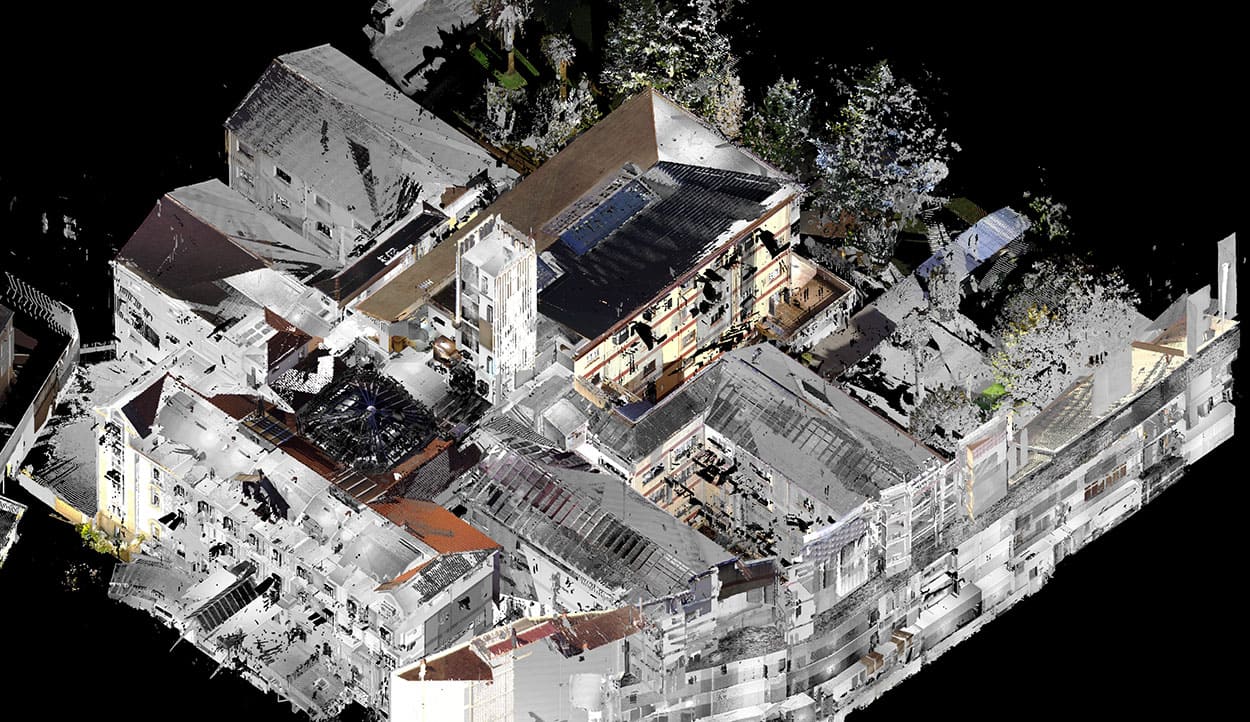

The purpose of the project was to know the as-is condition of a community center in Spain in order to reconstruct the unused space and increase the utility area. The building was a community center that had different types of buildings such as hotel, church, theatre, etc. The total project area was 3000 square meters.
The client had provided us with scans through the cloud server as well as CAD Drawings. We had to develop a Revit model of LOD 200 and extract plans, elevations and sections. The total turnaround time for the project was 5 working days.
Project Deliverables
- Revit Model of LOD 200
- Architectural 2D Sheets which included plans, elevations and sections.
